Symbol Tool In Affinity Designer

Symbols

A symbol is an intelligent object that can be placed repeatedly in your document. Editing any one of these symbols on the page will automatically and instantly update all instances of that symbol.

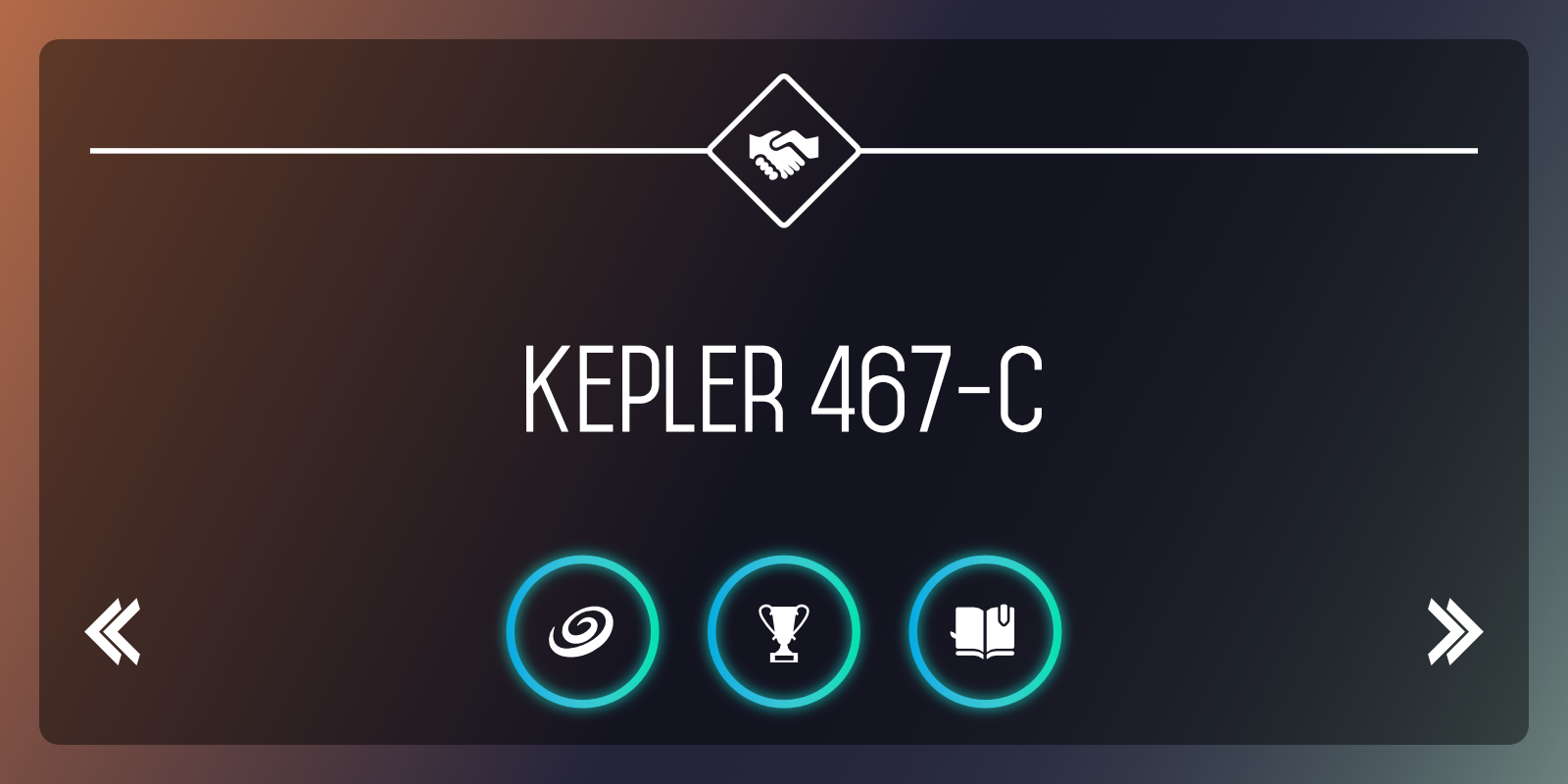

Before

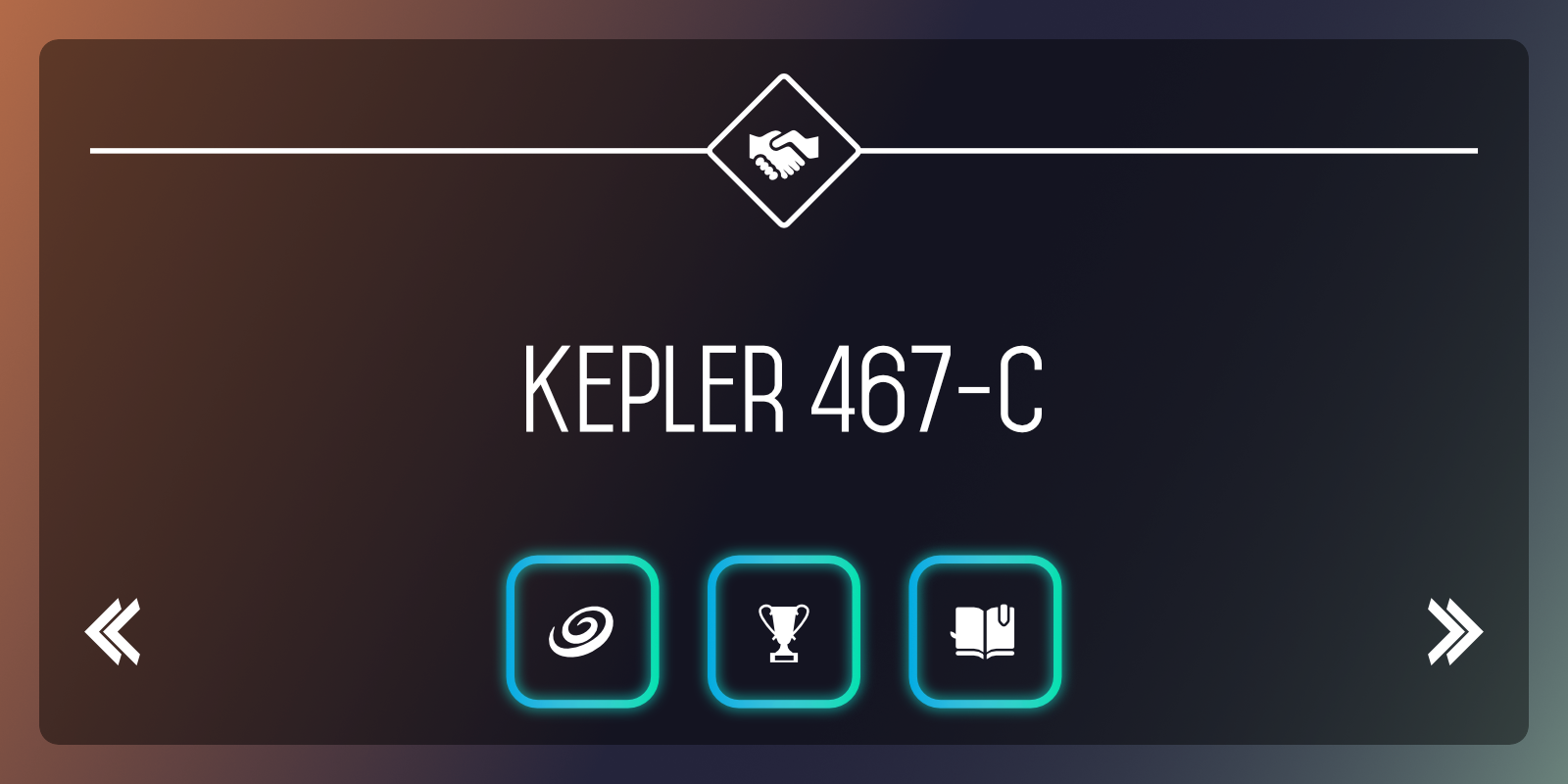

After

The glowing button outline is a symbol. When the shape of the button is modified on just one instance, they all change simultaneously.

Symbols

Symbols offer a highly efficient way of working, suitable for 'repeating' elements of design that are liable to change, e.g. logos, branding, and buttons, as well as specific adjustments. By avoiding having to edit the same elements multiple times, a symbol can be edited just once with all instances of that symbol updated automatically, even across multiple artboards. You also have the option to edit any symbol instance independently of others.

Linking

Symbol links are automatically made when creating multiple instances of a symbol. This linkage is fundamental to symbol functionality and, by default, allows changes to symbols to be reflected across all instances.

Synchronizing

Synchronization allows editing across all symbols, while unsynchronization means all future editing is restricted to the current object and no longer affects the other symbol instances, until synchronization is enabled again.

If a symbol instance no longer needs to be a symbol, it can be detached (made into a standard object) without affecting synchronization. If all symbol instances no longer need to be symbols, you can revert them all back to standard objects.

Editing

You can perform any edit to symbols just as you would to a standard object. You can:

Reshape, change stroke/fills, and add effects/adjustments. Note that global colors can also be used to change color across object independently of symbols.
Add new 'non-symbol' objects to the symbol by dragging into the symbol group in the Layers panel.

As a useful visual aid, symbols are indicated by an vertical orange bar on their layer entries in the Layers panel. If a symbolized object has been edited when unsynchronized a dashed orange bar is shown instead.

Symbol indicators — The Layers panel showing symbol indicators.

To create a symbol:

Select an object or group on the page or via the Layers panel.
On the Symbols panel, click Create.

To create symbol instances:

Do one of the following:

On the Symbols panel, drag a chosen symbol onto the page.
Duplicate an existing 'on page' symbol already present on the page.

Once there are multiple instances on your page, symbol linkage allows synchronization to occur across objects.

To edit a symbol instance:

On the Layers, expand a chosen Symbol entry, then edit the objects within.

To disable synchronization:

On the Symbols panel, click Sync to disable so any object can be independently edited. When enabled again, editing is synchronized across all symbol instances.

To detach objects from symbols:
